Home > cnc plasma cutting machine >

plasma cnc sheet cutting machine

Product Categories

Shandong Guoming Machinery tools CO.,LTDited

Contact Now

Place of Origin : china

Brand Name : hengrui

Certification : CE ISO

Model Number : HR-1525

MOQ : 1

Price : 1500-2500 usd

Packaging Details : wooden case

Delivery Time : 5-8 days

Payment Terms : TT Western Union

Supply Ability : 100sets one month

Type : plasma cnc sheet cutting machine

Contact Now

No.	plasma cnc sheet cutting machine
1	Model	HR-1525	HR-1530	HR-1760
2	Power source	AC 220/380±10%VAC 50/60Hz
3	Cutting mode	O2/C3H8 or C2H2
4	Effective cutting range(mm)	1500*2500	1500*3000	1700*6000
5	Input Voltage	220V, 50HZ
6	Cutting speed(mm/min)	0-8000mm/min
7	Cutting thickness(Flame)(mm)	6-160 (O2/C3H8 or C2H2)
8	Move precision	±0.2mm/m
9	Torch	Flame, electric height adjustment(±60mm)
10	Processing thickness(mm)	0.5-15mm
11	Cutting system	Start control system
12	Host weight(kg)	19
13	Gas pressure(Mpa)	Max.0.1
14	Oxygen pressure(Mpa)	Max.0.7
15	Type of gas	C3H8 C2H2
16	Emergency stop	Yes
17	Working temperature	-5~45℃
18	Power	8.5kw
19	Plasma power	100A (cut 0--16mm)
20	ARC	Untouched arc striking
21	Processing Materials	Iron, steel aluminum sheets, galvanized sheets, Titanium plates

plasma cnc sheet cutting machine

whatsapp: +8613012652252

email: chinashen2006@hotmail.com

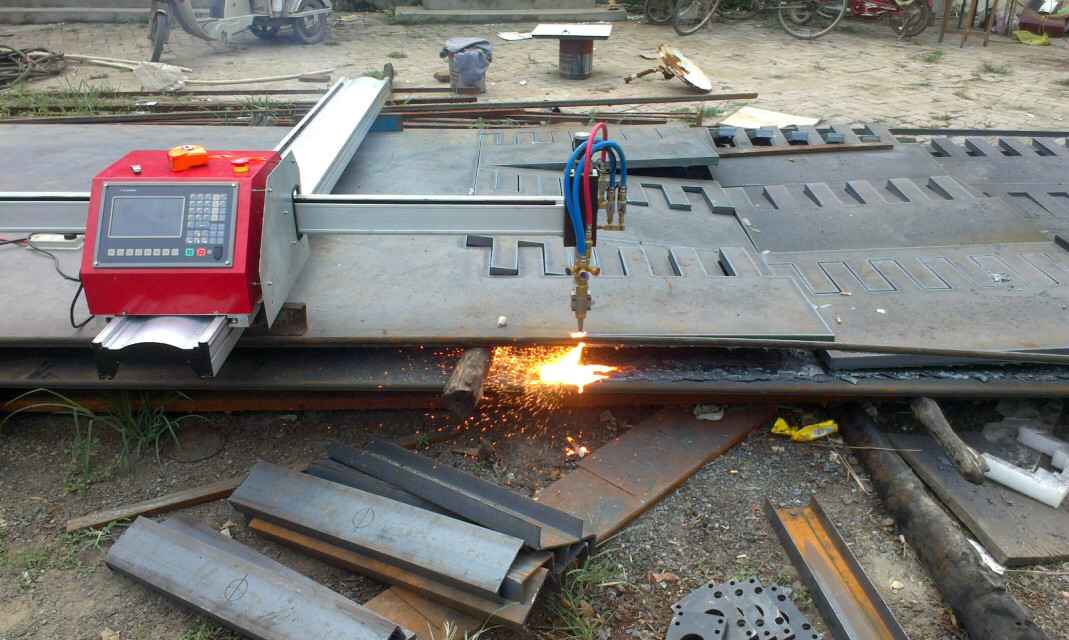

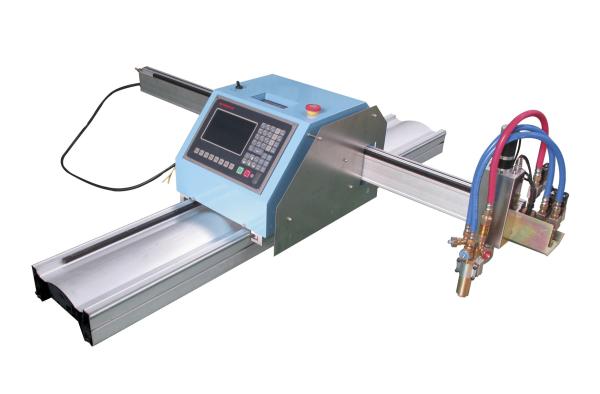

plasma cnc sheet cutting machine Images
